CODE: 14330

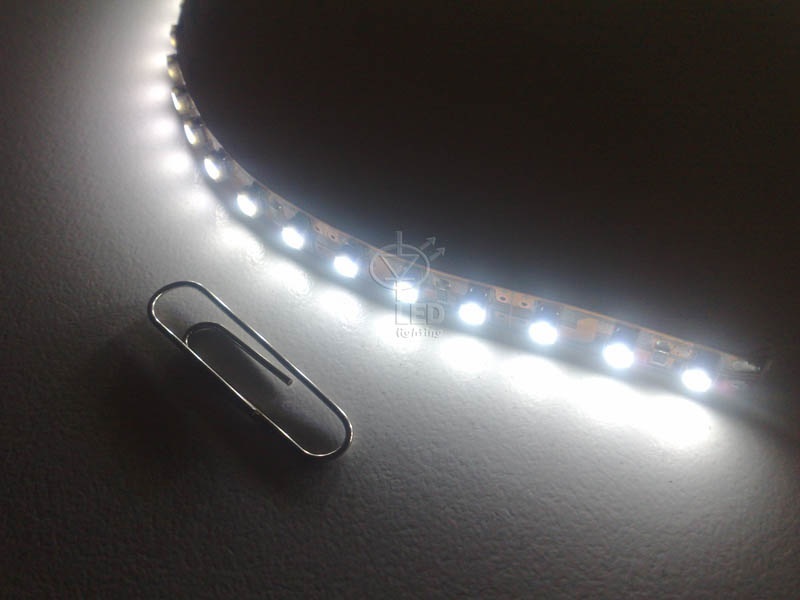

Our High Output SMD Ribbon consists of 120 x (3528 type) SMD LEDs per/metre evenly spaced along its length which provides a continuous linear light form.
It can be cut and rejoined every 25mm along its length allowing it to be custom made to virtually any size. Supplied with 3M self adhesive backing tape it can easily be mounted to most surfaces without the need for any additional components.
General applications for our High Output SMD ribbon include – large cove light, large scale pelmet lighting, back lighting, splash back lighting, under bench lighting or any joinery application that requires a reasonable amount of illumination.
Note: An LED strip mounting profile IS MANDATORY WHEN SUPPLYING THIS PRODUCT
Specifications (per metre)
| Input Voltage |
12VDC |
| Power Consumption |
9.6 watts maximum |
| LED Quantity |
120 x SMD LEDs |
| LED Lifespan |
80,000 hours |
| LED Spacing |
8.3mm |
| Cutting Interval |
25mm |
| Beam Angle |
>120° |
| Dimensions (WxH/mm) |
10x2 |
| Operating Temp |
-20~40°C |
| IP Rating |
No IP |
| Roll Length |
5m |
Typical Applications
• Pelmet /Cove lighting
• Illuminated signage
• Under bench lighting
• Stair lighting
• Handrail/Balustrade lighting
• Backlighting transparent or diffused material
| Colour |
Product Code |
Luminous Flux(±10%) |
Colour Temp |
 Cool White |
LED-DWA-W |
840lm |
4800K-5300K |
 Warm White |
LED-DWA-WW |
660lm |
3000K-3300K |
| Our Price : |
$97.30
($88.45 ex GST) |
Quantity
